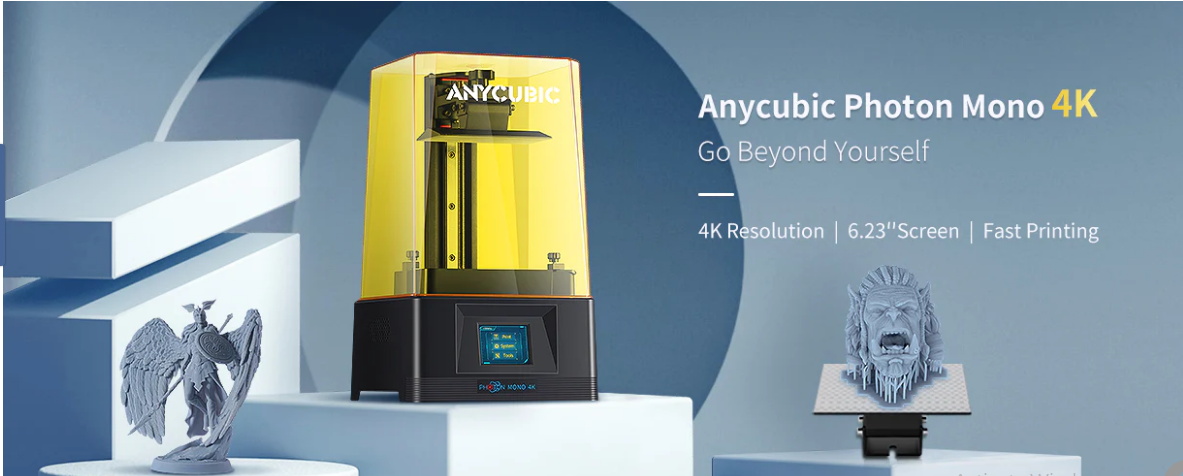

Technical Specifications
- Exposure screen: 6.23’’ monochrome

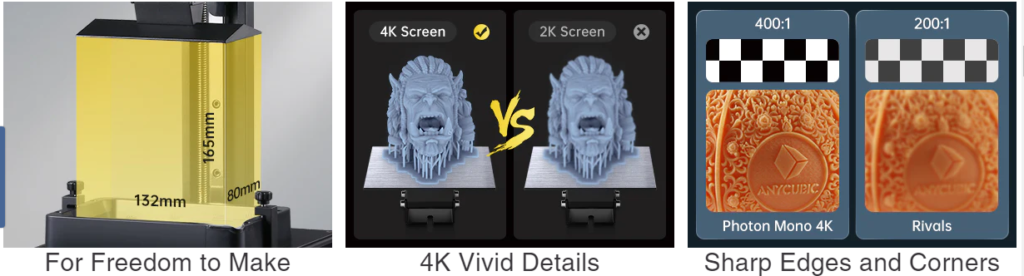

- Printing dimensions: 6.5 x 5.2 x 3.1 in. / 165 x 132 x 80 mm (HWD)
- Light transmittance: 7%
- Contrast ratio: 400:1
- Light source: Parallel matrix (LED x 15)
- Power density: 3,500 – 4,000 μw/cm²/23,905 – 27,320 lux
- Printing accuracy: 3,840 x 2,400 px (4K)
- Suggested layer thickness: 0.01 – 0.15 mm
- Horizontal resolution: 35 μm
- Printing speed: ≤ 50 mm/hr. / 1.97 in./hr.
- Control panel: 2.8’’ TFT touch-control
- Data input: USB-A 2.0
- Power supply: 45W
- Software: Photon Workshop
- Machine dimensions: 15.1 x 8.9 x 8.7 in./383 x 227 x 222 mm (HWD)
- Machine weight: 9.4 lb./4.3 kg

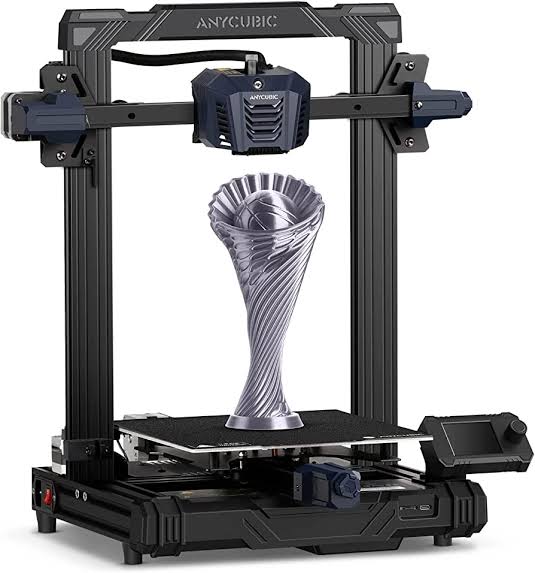

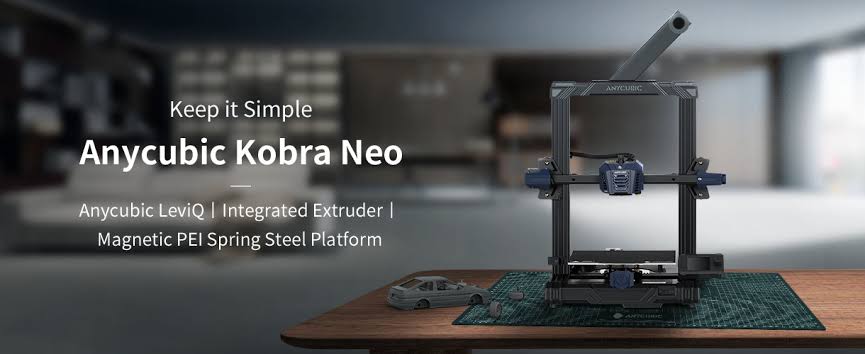

Technical Specifications

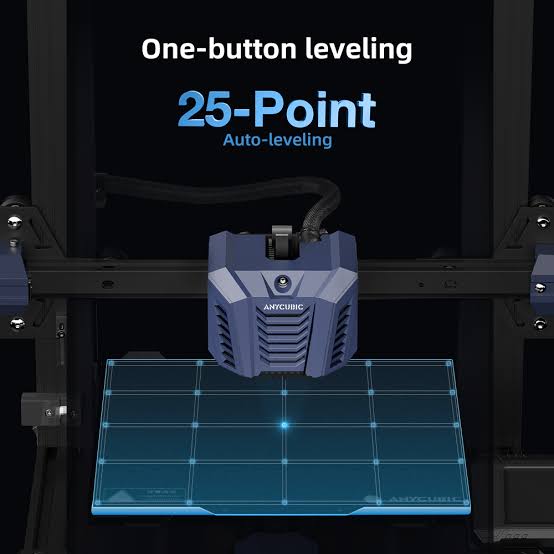

- Leveling: 25-point automatic leveling
- Printing platform: 8.7 x 8.7 inches / 220 x 220 mm
- Filament run-out detection: optional
- Printing material: PLA / ABS / PETG & TPU

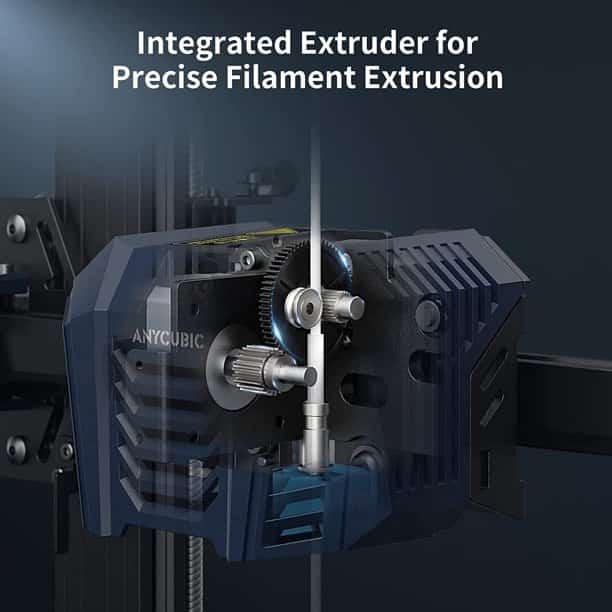

- Nozzle size: ø 0.4 mm (replaceable)
- Nozzle temperature: ≤ 500 °F / 260 °C
- Hot bed temperature: ≤ 230 °F / 110 °C

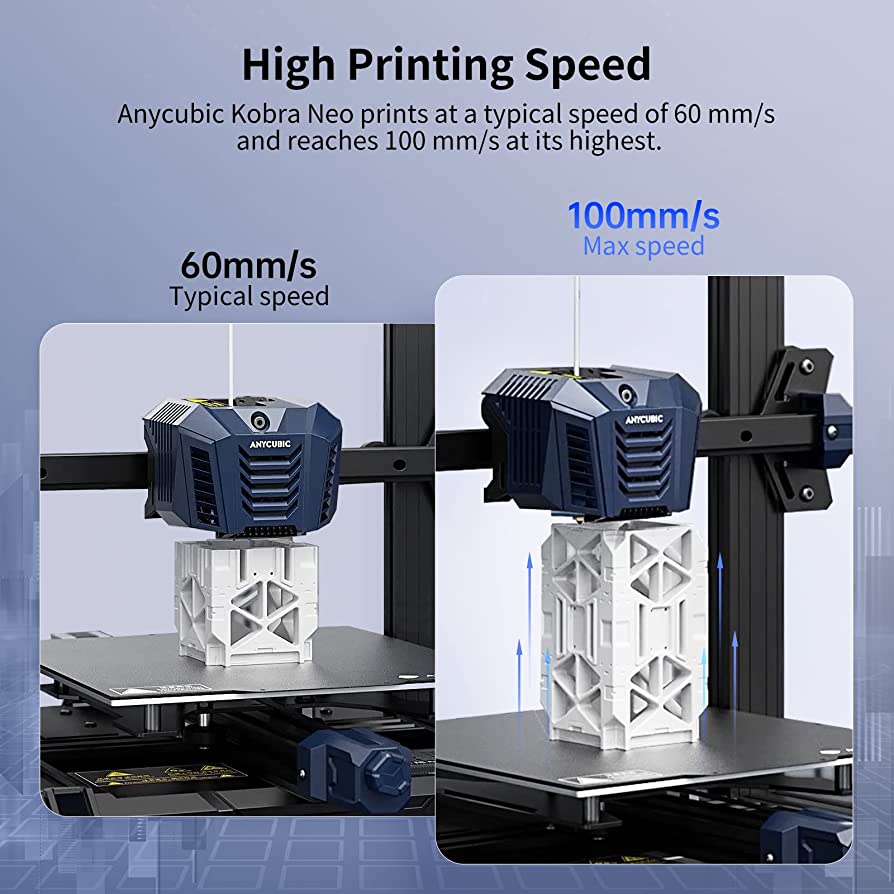

- Printing speed: ≤100 mm/s (Max speed)
- Control panel: 2.4″ LCD screen with a control knob
- Z-axis: single threaded rod

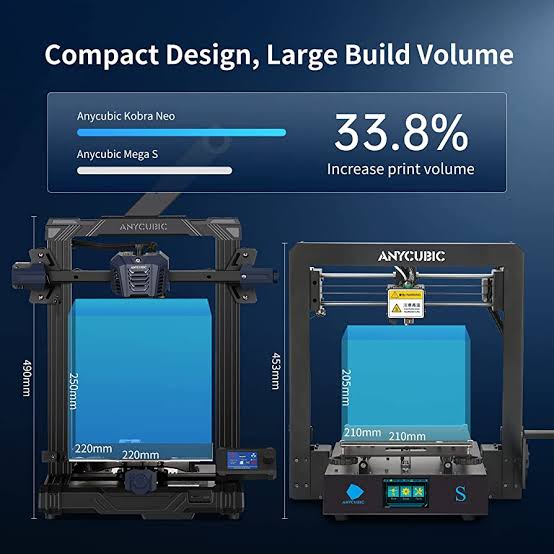

- Printing dimensions: 250 x 220 x 220 mm (HWD)
- Machine dimensions: 490 x 445 x 443 mm
Technical Specifications
- Exposure screen: 6.23’’ monochrome
- Printing dimensions: 6.5 x 5.2 x 3.1 in. / 165 x 132 x 80 mm (HWD)
- Light transmittance: 7%
- Contrast ratio: 400:1
- Light source: Parallel matrix (LED x 15)
- Power density: 3,500 – 4,000 μw/cm²/23,905 – 27,320 lux
- Printing accuracy: 3,840 x 2,400 px (4K)
- Suggested layer thickness: 0.01 – 0.15 mm
- Horizontal resolution: 35 μm
- Printing speed: ≤ 50 mm/hr. / 1.97 in./hr.
- Control panel: 2.8’’ TFT touch-control
- Data input: USB-A 2.0
- Power supply: 45W
- Software: Photon Workshop
- Machine dimensions: 15.1 x 8.9 x 8.7 in./383 x 227 x 222 mm (HWD)
- Machine weight: 9.4 lb./4.3 kg
Technical Specifications
- Leveling: 25-point automatic leveling
- Printing platform: 8.7 x 8.7 inches / 220 x 220
- Filament run-out detection: optional
- Printing material: PLA / ABS / PETG & TPU
- Nozzle size: ø 0.4 mm (replaceable)
- Nozzle temperature: ≤ 500 °F / 260 °C
- Hot bed temperature: ≤ 230 °F / 110 °C
- Printing speed: ≤100 mm/s (Max speed)
- Control panel: 2.4″ LCD screen with a control knob
- Z-axis: single threaded rod
- Printing dimensions: 250 x 220 x 220 mm (HWD)
- Machine dimensions: 490 x 445 x 443 mm
